Vintage Analog Sound — Small Enough to Fit in a Backpack

The Prophet-6 desktop module is every bit as powerful and easy to use as its counterpart, the Prophet-6 Keyboard. The module has all of the same controls as the keyboard version and provides the same immediacy and ease of use — with absolutely no menu diving. As with the Prophet-6 Keyboard, all parameters are at your fingertips, with full-sized knobs and switches and a comfortable, intuitive layout.

How does it sound? Awesome — just like the keyboard, because on the inside, it’s exactly the same. The same analog signal path with discrete VCOs and VCFs. The same high-quality digital effects. The same classic sound that has been earning raves from customers and reviewers alike.

We’ve also added a poly chain feature so that any two Prophet-6s can be paired for twelve-voice polyphony!

Vintage with a Modern Twist

Both the Prophet-6 desktop module and keyboard are Dave Smith’s tribute to the poly synth that started it all—the Sequential Prophet-5. But it’s not simply a reissue of a classic. Rather, as Dave puts it, “It’s the result of our effort to build the most awesome-sounding, modern analog poly synth possible.” The Prophet-6 takes the best qualities of the original Prophet-5—true voltage-controlled oscillators, filters, and amplifiers—and adds enhancements such as studio-quality effects, a polyphonic step sequencer, an arpeggiator, and more. The result is pure, unadulterated analog tone with the stability and reliability of a state-of-the-art modern synth.

Classic Tone, Classic Vibe

Central to the warm, punchy sound of the Prophet-6 are its two newly-designed, discrete voltage-controlled oscillators (plus sub-oscillator) per voice. Continuously variable waveshapes provide the tonal palette with triangle, sawtooth, and variable-width pulse waves. There are two discrete filters per voice—a four-pole, resonant, low-pass inspired by the original Prophet-5 filter, and a two-pole, resonant, high-pass filter. Voltage-controlled amplifiers complete the all-analog signal path.

Dual Effects

The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus and phase shifter. While the effects themselves are digital, with 24-bit, 48 kHz resolution, a true bypass maintains a full analog signal path. There’s also an independent stereo distortion effect, which is 100% analog.

Poly Mod and Poly Step Sequencing

Also present from its classic predecessor is a Poly Mod section, with enhancements. True to the original, modulation sources are filter envelope and oscillator 2 (both with bi-polar control). Destinations include oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, and high-pass filter cutoff. Another welcome reprise is Unison mode, which features configurable voice count (1-6 voices) and key modes. The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create sequences polyphonically, with rests, and sync to an external MIDI clock. The full-featured arpeggiator can be synced to external MIDI clock as well.

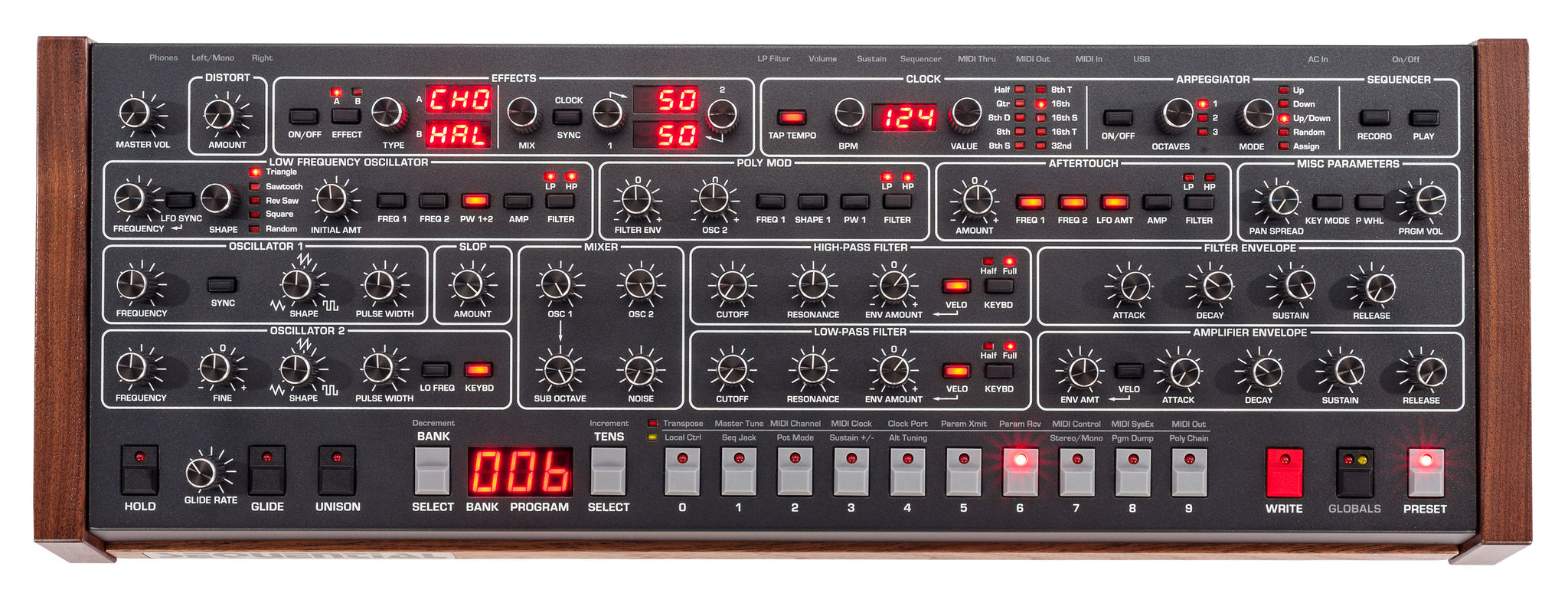

Easy to Program

The knob-per-function front panel offers instant access to virtually all Prophet-6 functions. Included are 500 permanent factory programs and 500 rewritable user programs. Toggling off the Preset button enables live panel mode, in which the sound of the Prophet-6 switches to the current settings of its knobs and switches. In this state, what you see is what you hear.

Easy to Play

All of this awe-inspiring sound is packed into a desktop module that’s small enough to fit in a backpack. It’s an ideal combination of portability and power for the project studio or the gigging musician.

Specifications

OSCILLATORS

  • Two newly designed, discrete VCOs per voice
  • Continuously variable wave shape (triangle, sawtooth, pulse, square) per oscillator
  • Pulse width per oscillator
  • Hard sync: oscillator 1 syncs to oscillator 2
  • Triangle sub-octave generator (oscillator 1) per voice
  • Low frequency mode (oscillator 2)
  • Keyboard tracking on/off (oscillator 2)
  • Oscillator slop amount for increased tuning instability, from subtle to extreme

MIXER

  • Oscillator 1 amount
  • Oscillator 1 sub-octave amount
  • Oscillator 2 amount
  • White noise amount

HIGH-PASS FILTER

  • Two-pole, resonant, high-pass filter per voice
  • Bi-polar filter envelope amount
  • Velocity modulation of envelope amount
  • Keyboard tracking: off, half, full

LOW-PASS FILTER

  • Four-pole, resonant, low-pass filter per voice, inspired by the original Prophet 5 filter
  • Filter can be driven into self-oscillation with the Resonance control
  • Bi-polar filter envelope amount
  • Velocity modulation of envelope amount
  • Keyboard tracking: off, half, full

FILTER ENVELOPE

  • Four-stage (ADSR) envelope generator

AMPLIFIER ENVELOPE

  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATOR

  • Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
  • Clock sync (internal or external MIDI clock)
  • Initial amount
  • Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, low-pass filter cutoff, high-pass filter cutoff

POLY MOD

  • Sources: filter envelope (bi-polar) and oscillator 2 (bi-polar)
  • Destinations: oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, high-pass filter cutoff

AFTERTOUCH

  • Source: channel (mono) aftertouch with bi-polar amount
  • Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, low-pass filter envelope amount, high-pass filter envelope amount

CLOCK

  • Master clock with tap tempo
  • BPM control and display
  • MIDI clock sync

ARPEGGIATOR

  • Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
  • One, two, or three octave range
  • Up, down, up/down, random, and assign modes

SEQUENCER

  • Polyphonic step sequencer with up to 64 steps and rests

EFFECTS

  • Stereo analog distortion
  • Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifters, and ring modulator
  • Delay sync
  • True bypass maintains fully analog signal path when digital effects are off

PERFORMANCE CONTROLS

  • Polyphonic glide (portamento)
  • Hold switch latches held notes on
  • Unison (monophonic) mode with configurable voice count, from one to all six voices, and key modes
  • Preset switch: when off, the front panel is live; what you see is what you hear

PATCH MEMORY

  • 500 user and 500 factory programs in 10 banks of 100 programs each
  • Direct program access, including Prophet 5-style single-button access to the current set of 10 programs

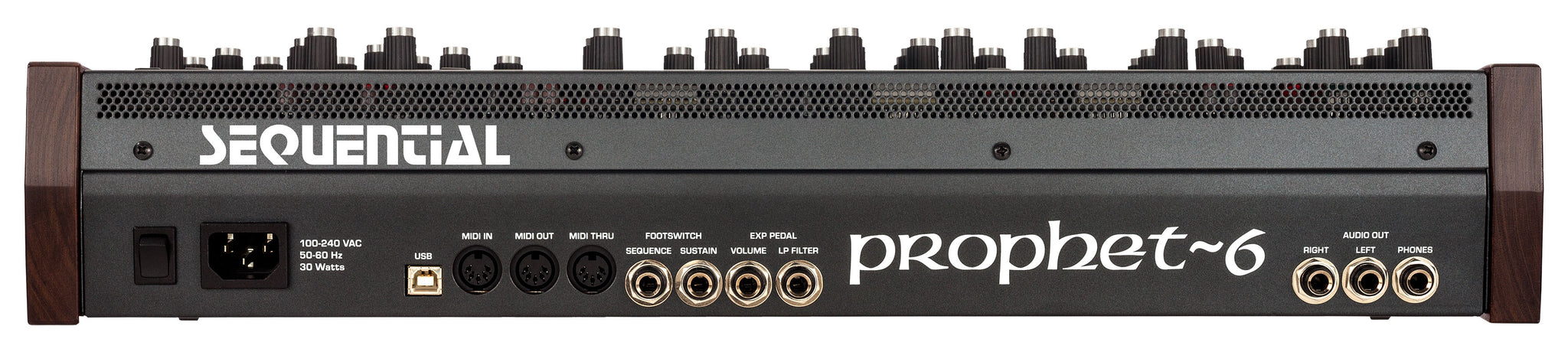

IN/OUT

  • Left and right audio outputs (2 x 1/4” phone jack)
  • Headphone output (stereo, 1/4” phone jack)
  • MIDI in, out, and thru ports
  • USB for bidirectional MIDI communication
  • Low-pass filter cutoff expression pedal input
  • Volume expression pedal input
  • Sustain footswitch input
  • Sequencer start/stop footswitch input

POWER

  • IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption

PHYSICAL SPECS

  • 21.25” L x 7.43” W x 4.4″ H (54.0 cm x 18.9 cm x 11.2 cm)
  • 13.0 lbs (5.9 kg)
  • Walnut end panels and trim
