Model:Cycles

Six track FM based groovebox

Scale angles dense and jagged, glide over plains vast and fluid, or sink into mists of dissonance. To model is to shape the formless. Model:Cycles is a six track FM based groovebox that brings exploring into the heart of sound sculpting.

With six unique Machines in one lightweight unit you can effortlessly mold rhythm and melody across the digital spectrum using instant, tactile controls. Exploration made attainable.

Define the formless

The six Machines of the digital FM engine are unique to Model:Cycles, and cover both percussive and melodic synths, allowing you to make full, varied compositions. The four core Synth Controls put the tools of sound sculpting right in front of you, altering the behavior of each Machine differently and letting you push them to the limit. Every sound has a start, where will you take it?

Dedicated Γ— 12

Dedicated knobs let you twist each Machine far and wide with wild, unexpected results waiting to be discovered. Use Control All to heave a parameter to the extreme and back again across every track. Elektron’s powerful sequencer gives you the freedom to record every move live or program the sounds and parameters of your composition one step at a time.

Light weight, heavy sound

Whether you use it as a versatile live instrument or groovebox on the go to pick up and craft full-blown compositions away from your studio, exploration has rarely felt so convenient and unimpeded.


The Machines

The Synth Controls

COLOR
SHAPE
SWEEP
CONTOUR


Four core synth engine controls which modify each Machine in their own weird and wonderful way.


Specifications

Synth voice features
  • 6 Γ— FM based Machines
  • 1 Γ— Assignable LFO per track
  • 1 Γ— Assignable velocity modulation per track
  • Storage space for up to 60,000 presets
Sequencer
  • 6 Γ— Audio tracks (all of which may be used as MIDI tracks as well)
  • Elektron sequencer with up to 64 steps
  • Unique length and scale settings per track
  • Parameter locks
  • Micro timing
  • Trig conditions
  • Assignable retrig
  • Real-time or grid recording of notes and parameters
  • 96 Γ— Projects
  • 96 Γ— Patterns per Project
Send & master effects
  • Delay and reverb send FX

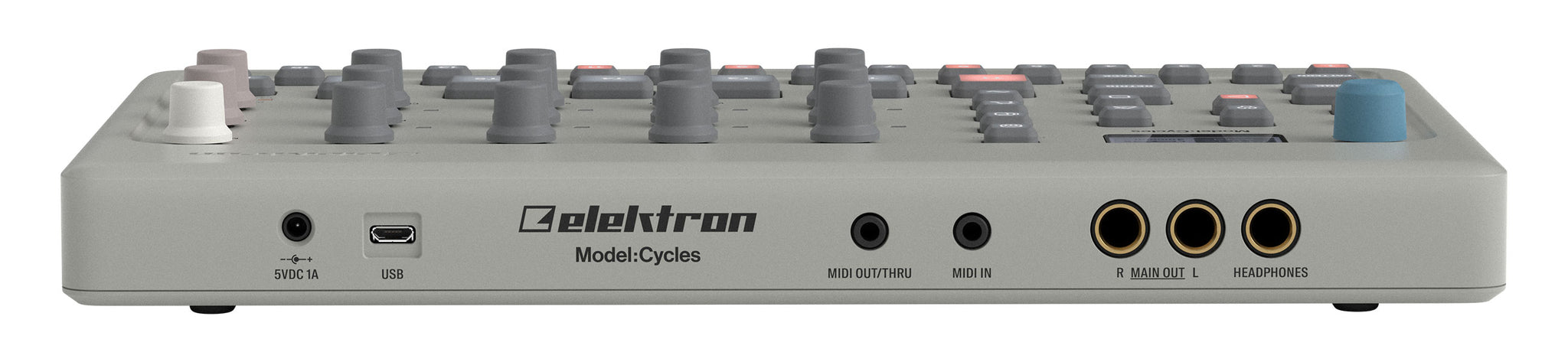

Hardware
  • 6 Γ— Velocity sensitive pads
  • Class compliant USB audio 2.0
  • 1  ×  1/4” stereo headphone jack
  • 2  ×  1/4” impedance balanced audio out jacks
  • 1 Γ— Hi-speed USB 2.0 Micro B port
  • 3.5 mm dual polarity TRS MIDI In, Out/Thru jacks
  • 128  Γ—  64 pixel LCD screen
  • 48 kHz, 24-bit D/A converters
  • Power inlet: Center positive 3.5  Γ—  1.35 mm barrel jack, 5 V DC, 1 A
  • Battery In: Center positive 5.5  Γ—  2.1 barrel jack, 4–10 V DC
  • 2 Γ— slots for attaching Power Handle BP-1 (battery pack to be released at a later date)
Physical specifications
  • W 270 × D 180 × H 39 mm (10.7” × 7.1” × 1.6”) (including knobs and feet)
  • Weight: approximately 0.80 kg (1.8 lbs)
Miscellaneous
  • 3 year Elektron warranty
Included in the box
  • Power Supply PSU-4
  • Micro USB Cable USB-2
  • 2 Γ— MIDI adapter (5-pin DIN to 3.5mm TRS minijack)

Support & Downloads

Latest OS updates and manual can be found in the Model:Samples support section.
