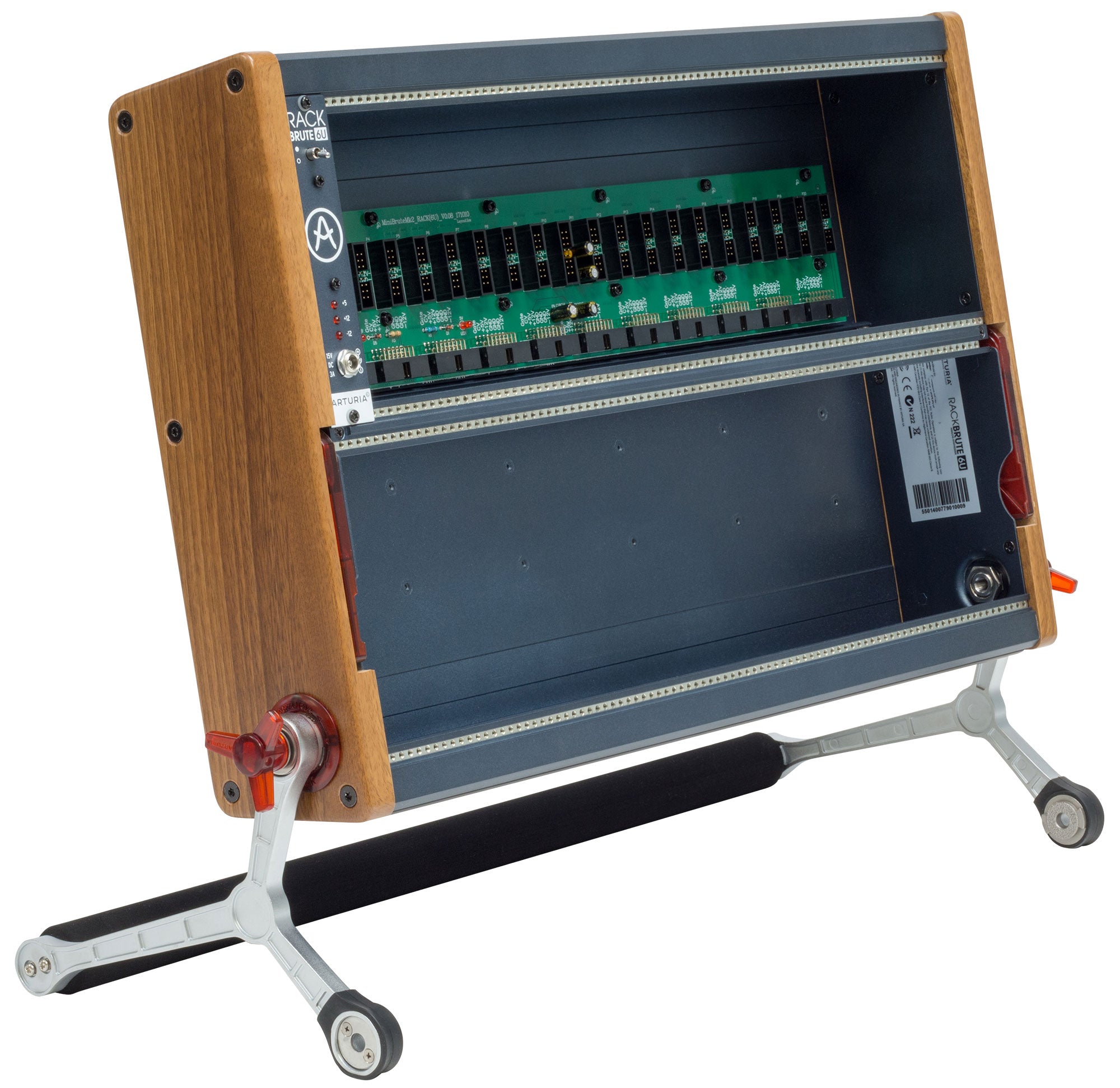

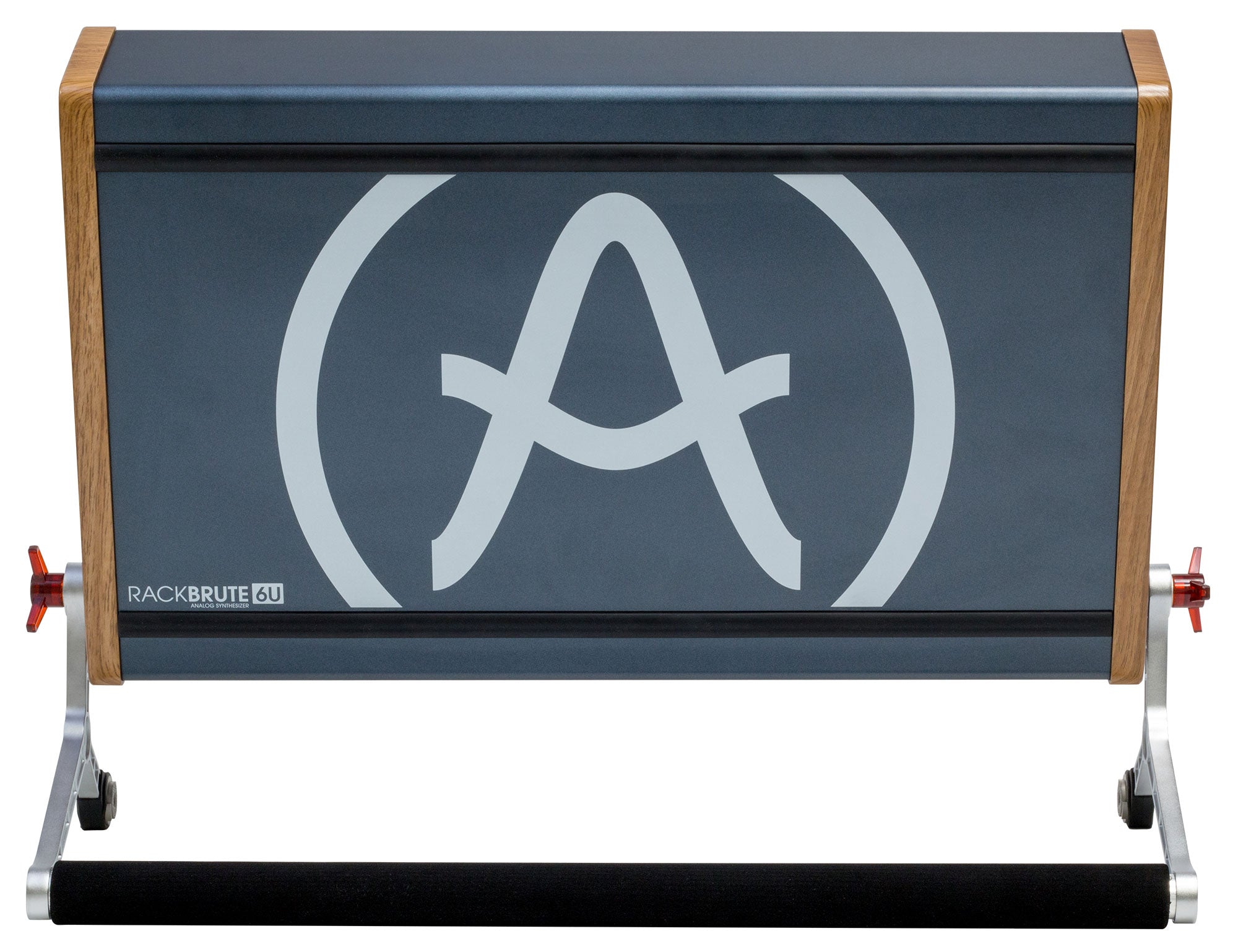

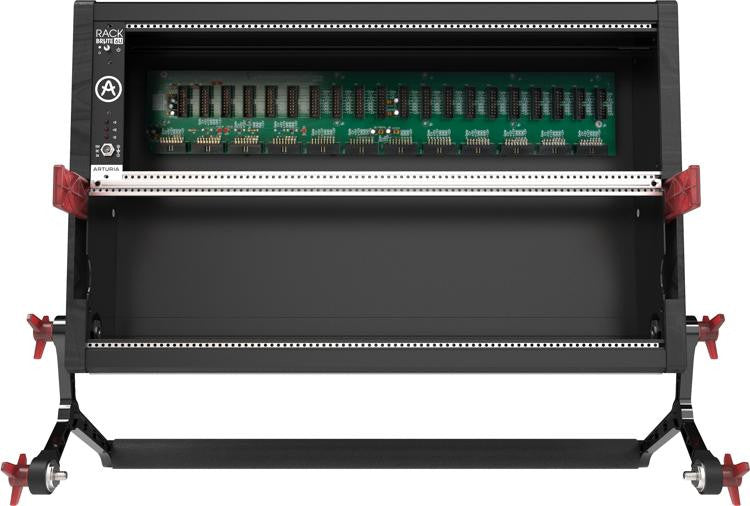

RackBrute 6U

RackBrute 6U

Regular price $ 359

📦 Ships same day when ordered by 2pm PST. 🛍 Local pickup available daily. Contact us for more information. 💙

ARMORED EURORACK CARRIER

Artists may have a bodyguard. Modules deserve armor-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminum chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command center the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

“This is my modular. There are many like it but this one is mine. My modular is my best friend. It is my life. I must master it as I must master my life.”

Armed and ready, Sir!

It cannot crawl, run, jump and climb, true, but it can lie down or stand up on demand.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes an formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner

May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analog monosynth flagship supported by a fleet of complementary modules?

MiniBrute 2


MiniBrute 2S


This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you’ll find everything to your liking.

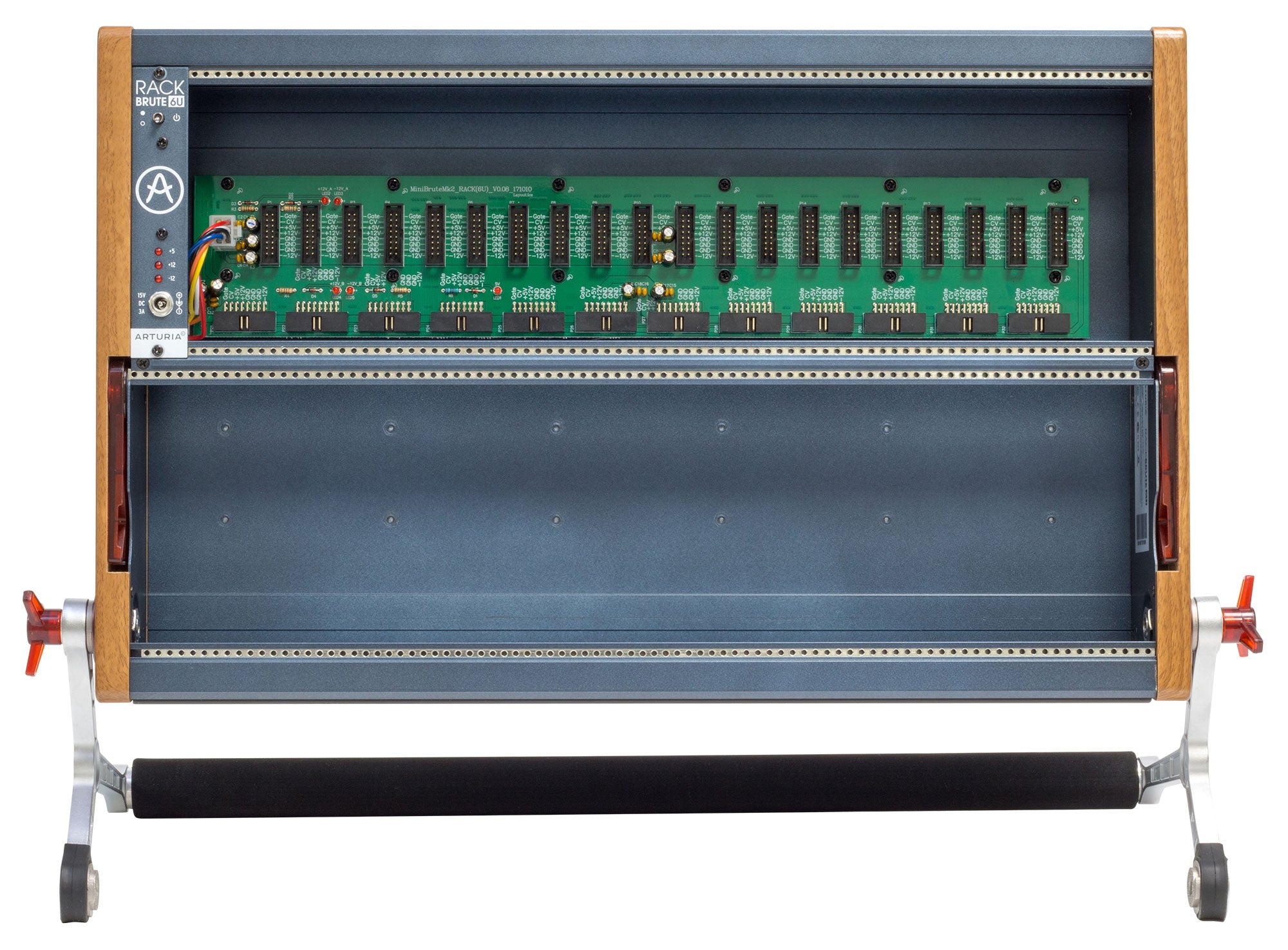

1. Power module

Power supply with 1600mA +12V output, 1600mA -12V output and 900mA +5V output. 5HP width.

2. Screw holes to connect modules

3. Power and signal distribution

connect up to 32 modules

4. Link system

use RackBrute in various configurations

5. Retractable stops

protection for folded configuration (requires another Link-ready unit)

6. 176HP total width

171HP available when power supply module is connected

7. Anti-slip strips

Keep everything nice and steady when RackBrute is placed face-up.

Go, go, go!

Don’t worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminum or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

Main Features

  • Eurorack format, 176 HP
  • Aluminum Chassis
  • Provided with a 5 HP power module
    • Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
    • Up to 900mA on 5V
  • Power rail with
    • Noise filtering
    • 32 standard power slots
    • 20-slot zone with up to 800mA on +12V and -12V
    • 12-slot zone with up to 800mA on +12V and -12V
  • Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
  • Built-in Spacers for the highest protection in transport configuration

Box contents

  • RackBrute 6U unit
  • Power cord

Size & weight

  • Instrument size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
  • Instrument weight : 8.3 lbs. (3.76 Kg)
