Axino Synergy Core
📦 Ships same day when ordered by 2pm PST. 🛍 Local pickup available daily. Contact us for more information. 💙
All-in-one recording system in a USB microphone
Recording like the pros no longer requires an entire rack of expensive gear. The Axino Synergy Core combines the best of several devices in one recording system, that needs just a USB cable connected to a computer to achieve studio sound. It delivers high-resolution audio capture and allows you to record and stream with iconic microphone models and studio effects, as well as popular favorites like Antares’ Auto-Tune.
- HIGH-RESOLUTION SOUND
- 64-BIT CLOCKING
- 18 EMULATIONS INCLUDED
- 10 REAL-TIME FX INCLUDED
- METICULOUS MODELING
- LOOPBACK FOR STREAMING
- MAC OS & WINDOWS COMPATIBILITY
- PERFECT FOR ANY SOURCE
Minimal setup, maximum fidelity
The road to greatness starts with a sound path that is used in the best studios worldwide. Our way is to cover all basis – from the beginning phase of capturing the first acoustic guitar tone to the moment it hits your ears through the headphones. Each Axino Synergy Core is built using custom electronics, so it can help you on that road to greatness.
PRECISE SOUND CAPTURE
The gold-sputtered diaphragm ensures accurate representation of the original sound by keeping the frequency response as flat as possible.
STUDIO-GRADE CONVERSION AND CLOCKING
The high-resolution converters and award-winning 64-bit AFC™ clocking capture sound that is true to the source.
INTEGRATED DISCRETE PREAMP
The hybrid preamp design features our renowned Discrete circuitry achieving a transparent, uncolored sound.
AUDIOPHILE-GRADED/A CONVERTER
The HP output is backed by an audiophile-grade converter with 124dB of headroom ensuring high-fidelity audio playback.
- FREQUENCY RANGE: 20Hz - 20kHz
- AD/DA CONVERSION: 192kHz
- DYNAMIC RANGE UP TO: 124dB
Limitless possibilities to shape your sound
Get your ideas down with a single device for all your vocal and instrument recording, streaming, podcasting. With Axino Synergy Core you can set up for a session in an instant, whether you are at home or on the road. Similar to any fully stocked studio, it has the tools to not only improve your workflow but also your end product.
Take control viaa simple mixer
Create a stereo mix using the signal captured by the mic and any audio from computer media and games, while processing with near zero latency. You also have fast access to intuitive controls so you can decide which channels you’d like to listen to and which to record or stream.
Record witheffects
Shape your sound on the fly by loading up to four effects on the main recording channel as well as the two computer audio channels, and monitor in real-time. The available presets can make your signal sound professional with just a single click.
Loopbackaudio, easily
Combine the audio from multiple applications on your computer quickly and without hassle. Then, capture the audio using the loopback feature and add your voice when streaming and presenting via video conferencing applications.
10 Synergy Coreeffects included
The Axino Synergy Core comes bundled with 10 effects specially chosen to enrich any recording. Within the bundle you get compressors, EQs, preamps and dynamic processors that were modeled after iconic studio gear, making them perfect for achieving the ultimate radio-ready sound.
At any time, you can expand your collection by purchasing more analog-modeled effects such as Grove Hill’s Liverpool, and 3rd party effects like Antares’ Auto-Tune.
GYRAF GYRATEC IX - DUAL TUBE MIC PREAMP WITH HPF
Enhance your voice with a more aggressive tone with this mic preamp from Gyraf Audio that offers plenty of control.
AURAVERB - REVERB
Build on your sound with a sense of ambience and space, with our custom-made reverb effect.
MASTER DE-ESSER - DE-ESSER
The de-esser effect smooths out the sharpness of your voice by removing the harsh sibilance sounds.
POWERGATE - NOISE GATE
The noise gate effect helps you improve the clarity of your audio by eliminating unwanted background noise.
POWEREX - EXPANDER
The expander widens the dynamic range helping you increase the volume variation in your recordings.
VEQ-55A - 3-BAND EQ / HPF / LPF
Add definition and vintage coloration to any acoustic instrument with this effect modeled after an iconic console EQ.
BAE-1073 - 3-BAND EQ / HPF
The vintage BAE-1073 can be used to shape any source by adding a warm and true sound.
FET-A76 - FET COMPRESSOR / LIMITING AMPLIFIER
The original effect has been a studio staple for over 50 years – add its sonic character to your chain for bright and clear coloration.
OPTO 2A - TUBE OPTICAL COMPRESSOR / LIMITER
This legendary optical compressor is easy to control and adds a sense of smoothness to vocals.
BAE-1073MP - MIC / LINE PREAMP
The rich and warm coloration this 70’s British preamp adds to acoustic instruments and vocals is hard to beat.
SYNERGY CORE
- Processes effects in real-time with imperceptible latency while monitoring, tracking, streaming or mixing.
- Offloads all processing to the interface thus saving your host computer CPU & memory.
- Up to 12 effects instances loaded simultaneously in a single session.
18 microphone emulations included
The Axino Synergy Core uses Antelope Audio’s microphone Modeling Engine, which allows you to record with virtual recreations of classic microphones. It comes with 18 emulations of dynamic, tube, and FET condenser microphones to record and monitor in real-time. This system grants flexible workflow and the opportunity to experiment with different mic emulations to find the perfect sound.
Perfect for
INSTRUMENT RECORDING
VOCAL RECORDING
PODCASTING AND STREAMING
SPECIFICATIONS
CAPSULE
Capsule: Single
Diaphragm: Large diaphragm with gold-sputtered membrane
Diaphragm diameter: 34mm
Polar Pattern: Cardioid
SOUND
Freq. response: 20HZ ~ 20kHZ
Self-noise: 17 dBA
Max. SPL: 140dB (<1% THD @ 1kHz)
Sensitivity: 34±3DB(at 1kHz 0dB=1v/pa)
Headphone output DAC: High-Performance DAC with 124dB dynamic range
Microphone ADC: 117dB dynamic range
HARDWARE
Power Requirements: 5.0/500mA (USB Bus powered)

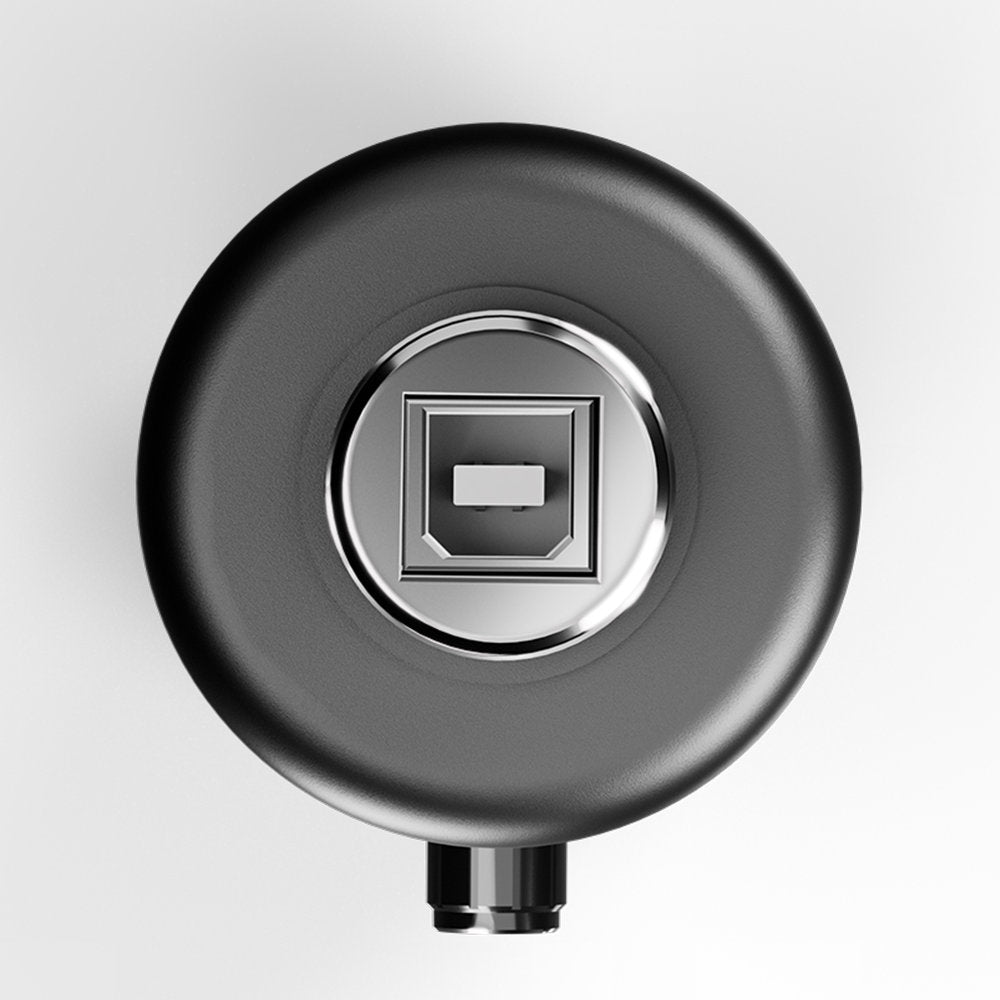

USB connector: USB Type-B (USB 2.0 compatible)
Headphone output: 1/8” (3.5 mm) stereo jack
Color: Black matte
Weight (mic body): 0.96 lbs (435 grams)
Dimensions (mic body): 1.9″ x 2.2″ x 7.4″ (50mm х 56mm х 188mm)
IN THE BOX
Axino Synergy Core
Table stand
Shockmount
USB cable
Quick start guide
