LYD 7

LYD 7

Regular price $ 649

📦 Ships same day when ordered by 2pm PST. 🛍 Local pickup available daily. Contact us for more information. 💙

LYD 7

  • Nearfield Monitor with 7" Woofer
  • Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
  • Bass extension to extend or curtail the low end frequency response
  • Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
  • Sound balance to influence the overall response of the speaker
  • Made in Denmark

Designed for:

Introduction

The new LYD 7 uses advanced Digital Signal Processing to extend or curtail the low-frequency response by 10 Hz where needed while both Position and Sound Balance ensure better performance in any environment.

Compared to its smaller sized sibling, the LYD 7's larger woofer helps extends bass response.

A ferrit magnet system with vented pole piece for accurate driver control. Large diameter voice coil surrounds the magnet for superior linearity. The aluminium voice coil and wire are low mass so its transient response is quick and accurate. To ensure the ideal mix between stiffness, weight, and dampening for unrivaled accuracy, Dynaudio moulds the diaphragm and dust cap in one piece with their proprietary Magnesium Silicate Polymer.

Features

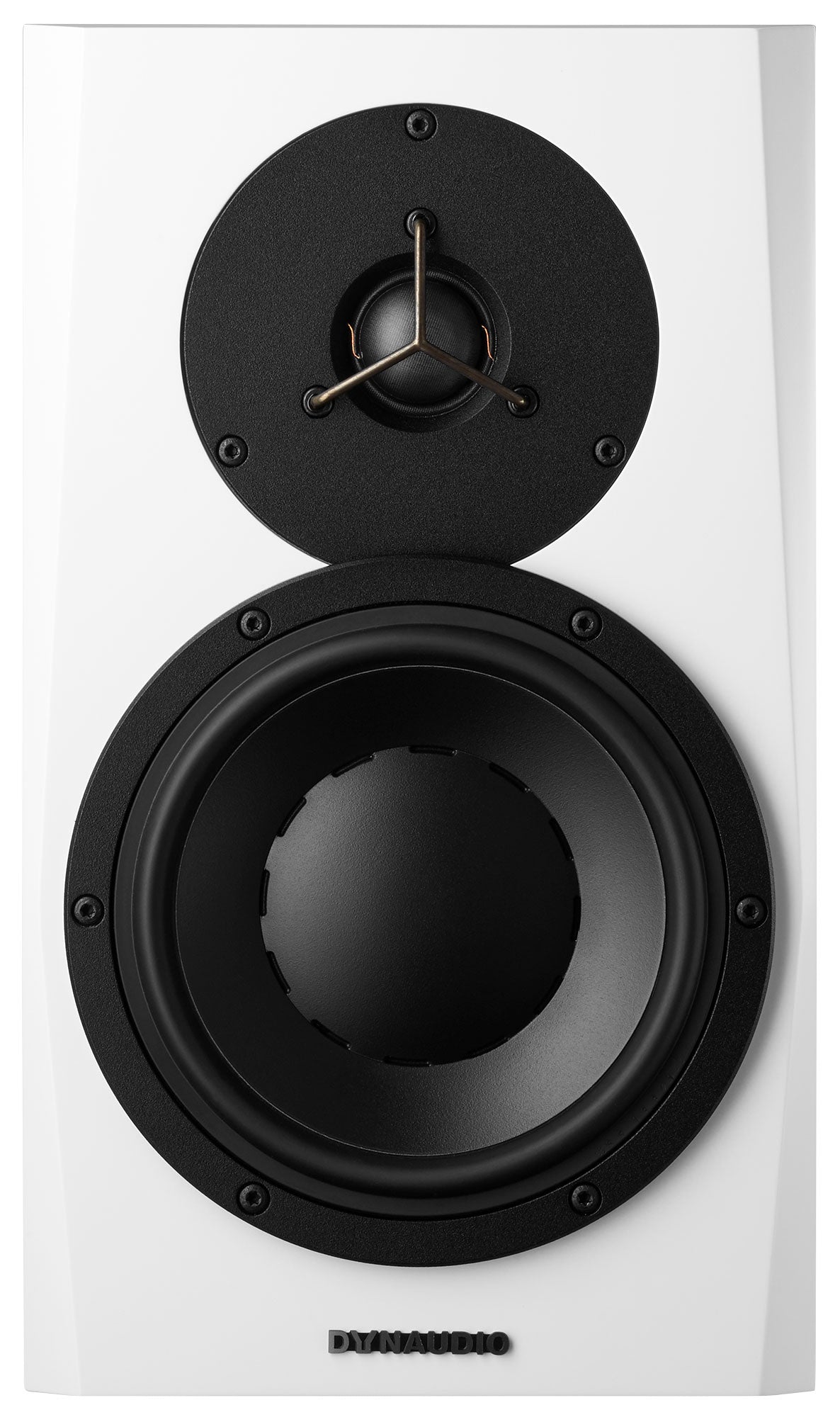

  • Nearfield monitor with 7'' woofer and 1" tweeter
  • Max. SPL (1m, pair): 109dB
  • Crossover freq.: 4300 Hz
  • Freq. Response of 45Hz - 22kHz
  • HF 50W/LF 50W Class-D amplification
  • Bass Extension
  • Position switch
  • Sound Balance

Technical Specifications

Frequency Response -6dB limits:
45 Hz - 21 kHz
Max SPL (1m, pair):
109dB
Principle:
Bass reflex
Crossover Freq.:
4300 Hz
Tweeter:
28 mm Soft dome (1.10 inches)
Woofer:
178 mm (7 inches)
Amplifier:
HF 50W/LF 50W Class-D
Dimensions (W x H x D):
186 x 320 x 296 mm (7.32 x 12.60 x 11.65 inches)
Weight:
8 kg (17.6 pounds)

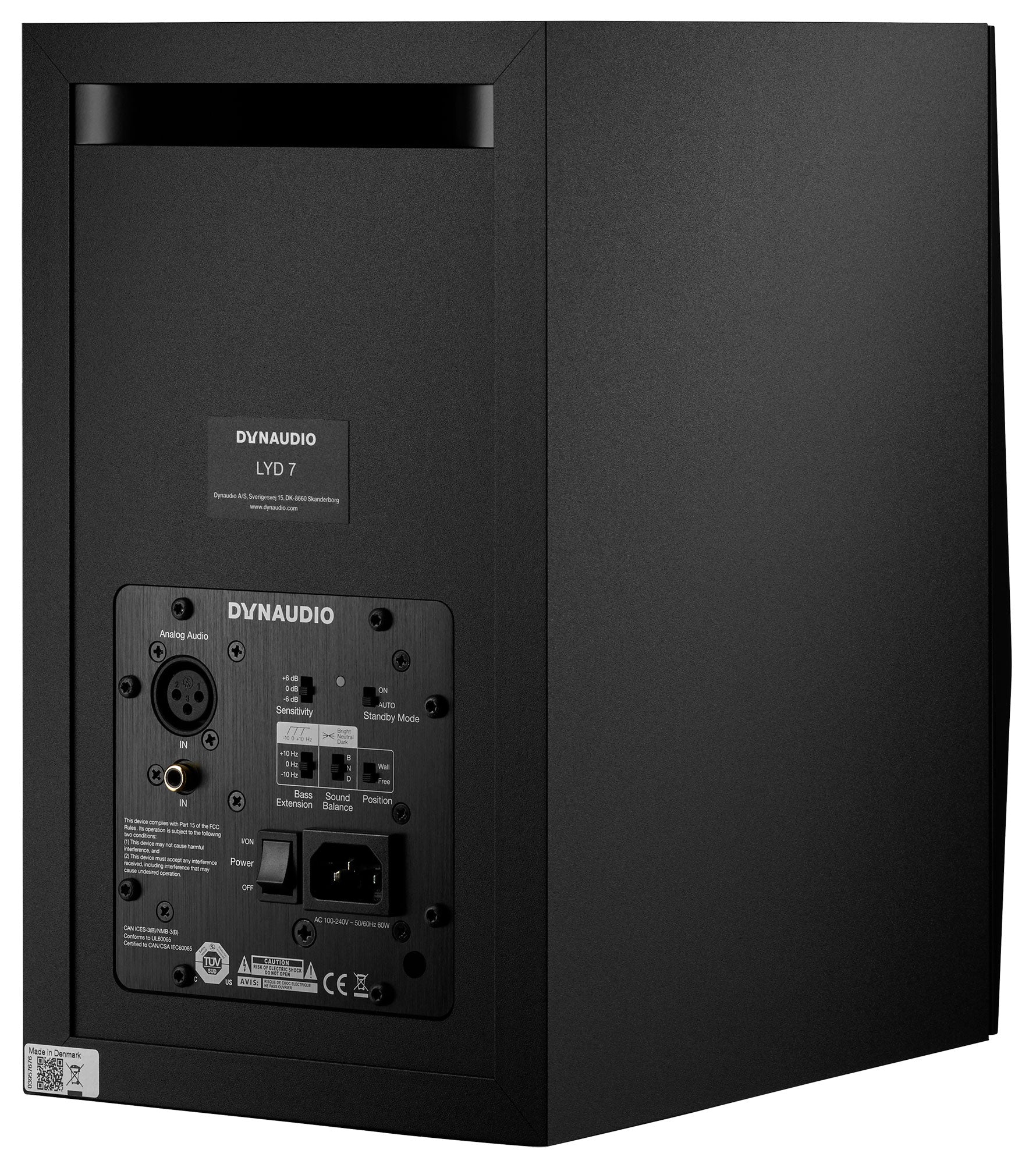

I/O Connectors:
XLR Balanced: RCA Unbalanced

Downloads

Manual

Data Sheet
