MicroBrute Red

MicroBrute Red

Regular price $ 300

📦 Ships same day when ordered by 2pm PST. 🛍 Local pickup available daily. Contact us for more information. 💙

Pure Analog

The MicroBrute is new but carries the award-winning heritage of its big brother, the MiniBrute.

The MicroBrute was designed to be small but still retain an amazing sound quality. With a 100% pure analog voice path and advanced interconnectability via MIDI, USB, CV/ GATE, this machine is a true powerhouse synthesizer that takes your sound to a new level.

Hands-On Heaven

If you’re new to synths, you’re looking at one of the easiest to use and most unique-sounding synthesizers we think money can buy. And if you’re a synth veteran, we think it won’t have escaped your attention that MicroBrute is also a seriously capable semi-modular sequence-able beast. Wait till you hear how it sounds.

No presets, no menus, nothing to get between you and the ability to sculpt your sound live. Not only does MicroBrute give you the means to create, perform and be completely original every time you power up, it does it with astounding sound quality.

Brutal Potential

Process audio. Sequence analog gear. Give your modular a new LFO and Envelope Generator. Hook up to your DAW and make whole tracks. Hook up to your Drumtracks, open your door, and play a whole gig.

Tiny in size, tiny in price, huge in sound, and vast in potential. We’ve had so much fun with MicroBrute: Now it’s your turn.

Details

A synthesizer is a musical instrument that is meant to be played.

However, playing a synthesizer is more than just playing some notes on a keyboard and recalling someone else’s presets. If that was the goal you could be looking at accordions or going to a department store to buy your keyboard (along with socks, milk and toilet paper)…but you aren’t, because you’re more creative than that.

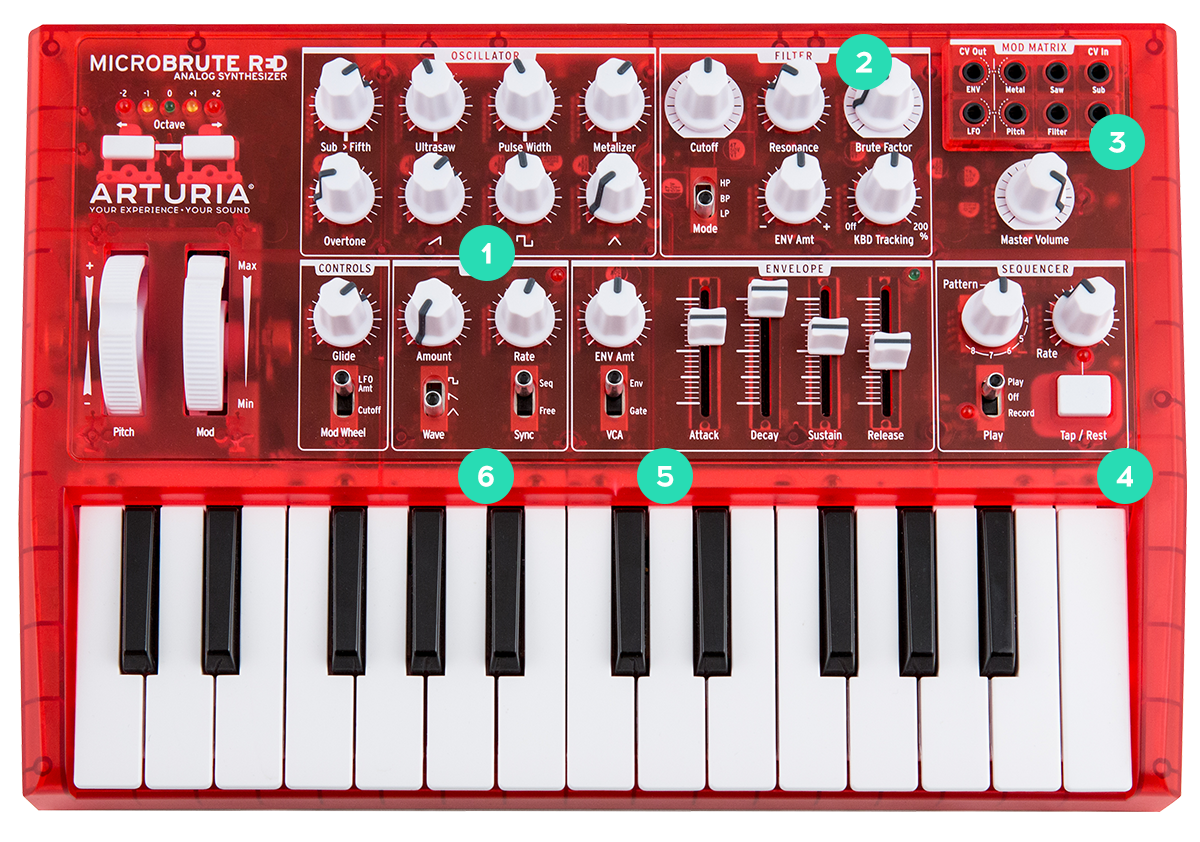

1-Massive Oscillator

Sawtooth, Pulse and Triangle waves with unique modifiers. Ultra Saw makes for huge sounds; Metalizer adds complex harmonics to the triangle wave. Sub Osc will rattle the house.

2-Steiner-Parker Filter

Beefy filter with Low Pass, High Pass and Band Pass modes. Resonance can be pushed into self-oscillation.

3-Modulation Matrix

Modulate the sound of the MicroBrute SE by connecting modulation sources and destinations. You can also use it to connect with external gear. With the MicroBrute SE's stackable patch cables, you get even more modulation possibilities!

4-Sequencer

You get 8 sequences with up to 64 steps each to create multiple musical phrases.

5-Superfast Envelope

ADSR envelope generator allows the sharpest attacks or extra-long release times.

6-Syncable LFO

The LFO supplies three waveforms and can run in sync with the Sequencer.

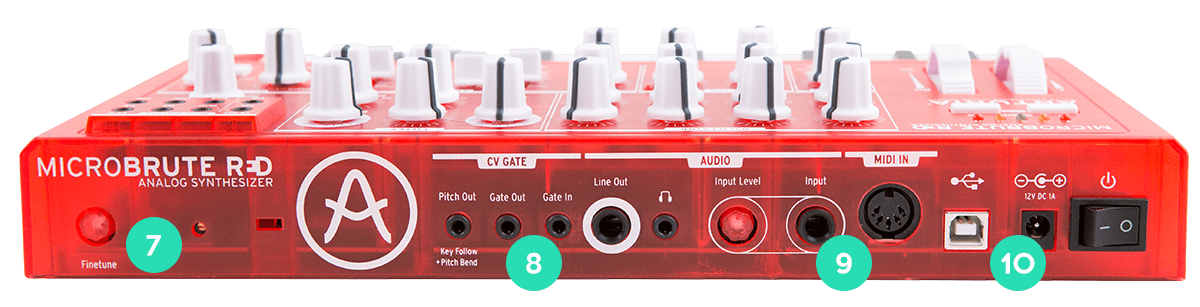

7-Fine Tuning

The MicroBrute SE uses 100% analog VCO's. Although ours are very stable, you may sometimes need to tune your instrument.

8-CV/Gate in/out

Connect your MicroBrute SE with your vintage analog gear.

9-Audio in/out

Process audio through MicroBrute SE; connect it to your favorite devices thanks to its audio input and output as well as MIDI input.

10-USB Connection

Control MicroBrute SE from your DAW or use it as a master keyboard.

The largest Oscillator sound around

VCO

The VCO on the MicroBrute is unique in the synthesizer world. It features the ability to mix waveforms in variable amounts as opposed to simple ON/OFF switches that are found on many synths at four times the price. The sound possibilities don’t stop there. Each waveform has wave modifiers that allow even further tonal variations. While many synths need two or three oscillators to get a somewhat big sound, the MicroBrute is able to achieve a much wider tonal range with its one oscillator.

Overtone

For the MicroBrute we redesigned our sub-oscillator from the ground up. The new OVERTONE sub allows for the typical -1 octave square wave that thickens up the bottom end but goes beyond this with the Overtone control. The Overtone control allows you to bring in more complex harmonics that when turned all the way up result in the oscillator changing pitch to a 5th above the root. This allows for some classic sounding leads and fatter basses. This control can even be modulated with the ENVELOPE or LFO via the mod matrix which creates some amazing new sounds never heard from a synth oscillator before.

Ultrasaw

The Ultrasaw builds two phase-shifted copies of the basic sawtooth signal. This effect, when turned up, gives you a slight thickening of the sound as it duplicates the sound of two saw oscillators close to the same pitch. You can then use the MOD MATRIX to route the LFO to the SAW which will add a third saw sound and allow you to simulate a wider detuning effect. This one saw wave can now sound like a three-oscillator synth by itself.

Metalizer

The Metalizer takes the basic triangular waveform and “warps/folds” it to create very complex jagged waveforms that are rich in high harmonics. This results in a hard sync sweep type of sound that is perfect for hardcore bass sounds or tearing leads. The ENVELOPE has a default routing to this parameter via the MOD MATRIX. Just turn up the ENVELOPE amount control, adjust your envelope to an interesting setting and you will hear the effect take hold.

Why didn’t we include batteries?

Considering the small size of the MicroBrute it seems like it would have been a no-brainer to make it battery-powered.

Well, we did consider it but decided to leave this option out for really good reasons.

Sound quality was key. Using high-current parts with larger voltage rails to get real sound means that more power is required. This is why so many battery-powered synths sound like toys and not like speaker-destroying monsters of sound.

And after looking at battery options and realizing that most people have accessible power, want to protect the environment and don’t want a small synth that weighs 20 pounds, we decided it wasn’t worth the tradeoffs batteries would require.

Box contents

  • MicroBrute synthesizer
  • User manual
  • Preset sheets
  • Power supply
  • 2 mini-jack patch cords

Size & weight

  • Instrument size : 12.8 x 8.7 x 2.36 inches (325 x 221 x 60mm)
  • Instrument weight : 3.86 lbs. (1.750 Kg)

Main Features

  • Monophonic synthesizer
  • 100% Analog audio signal path
  • Steiner-Parker 2-pole multimode filter (Low Pass, Band Pass, High Pass)
  • Analog Voltage Controlled Oscillator
  • Oscillator Mixer (Overtone, Sawtooth, Square, Triangle, audio in [on rear panel])
  • ‘Overtone’ sub oscillator/5th generator
  • Signal enhancers:
    • Pulse Width Modulation
    • Ultrasaw generates fat sawtooth waveforms
    • Metalizer brings in extreme harmonics
  • Brute Factor™ delivers saturation and rich harmonics
  • LFO with 3 waveforms (sine, sawtooth, square)
  • LFO can freerun or sync to arpeggiator
  • ADSR envelope generator
  • Keyboard tracking of the VCF cutoff
  • 25-note mini-key keyboard
  • Mod wheel (assignable to cutoff or LFO amount)
  • Pitch wheel (bend range selectable via software)
  • Octave selector from -2 to +2 octaves
  • External analog audio input
  • CV In jacks: Pitch, Filter, sub-harmonics, pulse width, Metalizer, saw animator
  • CV Out jacks: pitch, envelope, LFO
  • MIDI In with 5 pin DIN connector
  • USB MIDI In/Out
  • 1/4” audio output and 1/8” headphone output
  • Full-functioned step sequencer:
    • 8 memories
    • up to 64 steps per memory
    • tap tempo
    • rate control
    • step divisions (via software)
    • trigger modes (via software)
  • MIDI sync
  • Steel bottom panel
  • 12V DC 1A power supply
